Dashboard

Simulated motor telemetry and diagnostics.

AI Diagnostics

LIVE
Active ModelHybrid CNN-Transformer
Window Size200 samples (40ms)
Feature Input6 Channels (3I, 3V)
Inference Speed12ms

System Health

CRITICAL

Data Points Processed

14.2M

Event Log

System calibration completed successfully.

2m ago

Routine maintenance scheduled for tomorrow.

1h ago

AI Diagnostic Score

85%

Diagnosis: Faulty Open Circuit

Receiving Telemetry...

Vibration Analysis

Vibration Analysis

Frequency domain analysis of motor vibrations showing potential bearing faults detected at 120Hz harmonic.

Current Draw

Current Draw

Real-time phase current monitoring. Spikes indicate increased load or potential short circuits in the windings.

Temperature

Temperature

Stator winding temperature readings. Sustained high temperatures may lead to insulation degradation.

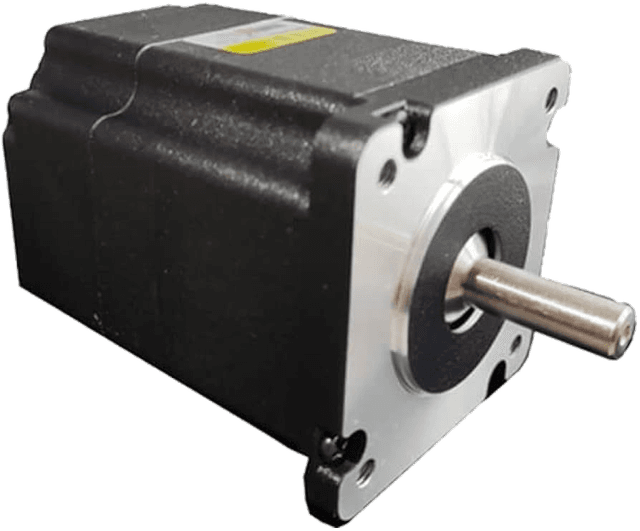

Motor used in the project

System Configuration

The MotorShield system is operating within nominal parameters, utilizing real-time telemetry to maintain winding temperatures and torque consistency for optimal efficiency. Integration with the hardware backend ensures every micro-step is logged, while predictive maintenance algorithms scan for harmonic distortions to preemptively mitigate mechanical fatigue. By synchronizing with the primary controller, the system manages voltage regulation and thermal dissipation, effectively neutralizing recent excursions in Sector 4 to prevent unplanned downtime and extend the lifespan of all connected motor units.
